T-bar (M)

Elephant T-Bar Ceiling Metric System is high quality and is manufactured from Hot-Dip Steel or Steel Sheet Zinc Alloy Coated by Hot Dip Process with the use of modern technologies as well as a new clip design that allows for faster and easier installation. This ceiling system is standard qualified, has a beautiful appearance, strong, durable, and has a higher load bearing capacity. It is suitable for installation in an office, factory, shop, or residence and suitable to install together with Elephant T-Bar Ceiling Tiles and Acoustic Boards.

The T-bar grid system is a Metric (M) grid system that is suitable to install with acoustic ceiling tiles and Elephant EchoBloc T-bar ceiling tiles.

Special Features

Minor grid comes with special registered patent clips providing convenience in detaching it from the main grid without needing any tools.

Using modern technology and machine manufacturing for best quality.

Provides a beautiful and modern look at its sections, suitable to install with flat ceiling tiles and lap siding ceiling tiles.

The grid system is made from standard quality zinc-coated metal and includes an anti-rust feature.

Technical Information
  • The grid system is made from zinc-coated metal (Hot-dip Galvanised Steel) standard quality JIS G3302.
  • Metal double layer, T-shaped with 3.5 mm. thickness.
  • Width painted with a white epoxy coating.
  • Main grid system available in two models: the DXI (32 x 24 x 3630 mm.) and DXII (38 x 24 x 3630 mm.).
  • Minor grid system available in 14 mm with 2 models: the DXT and DXM.
  • All T-bar grid systems feature a main tee and quick release clips.
  • Weight support ability testing certified according to ASTM C635 Standard.
Ceiling tiles that are compatible with T-bar Metric (M) grid system

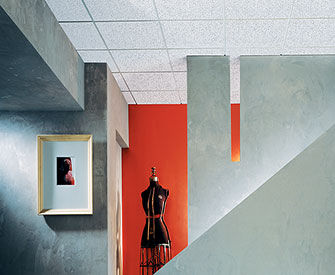

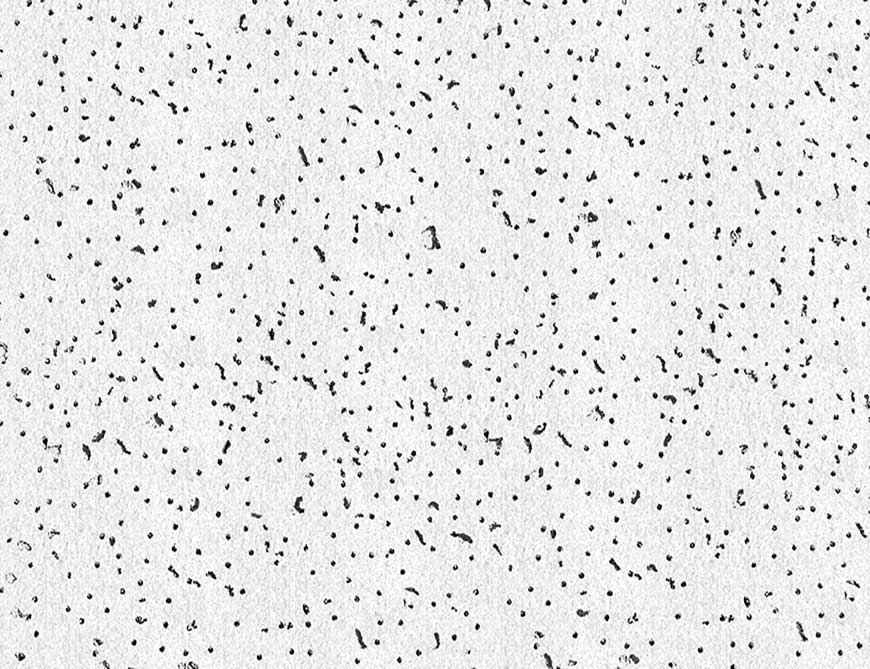

  • Acoustic Ceiling Tiles.

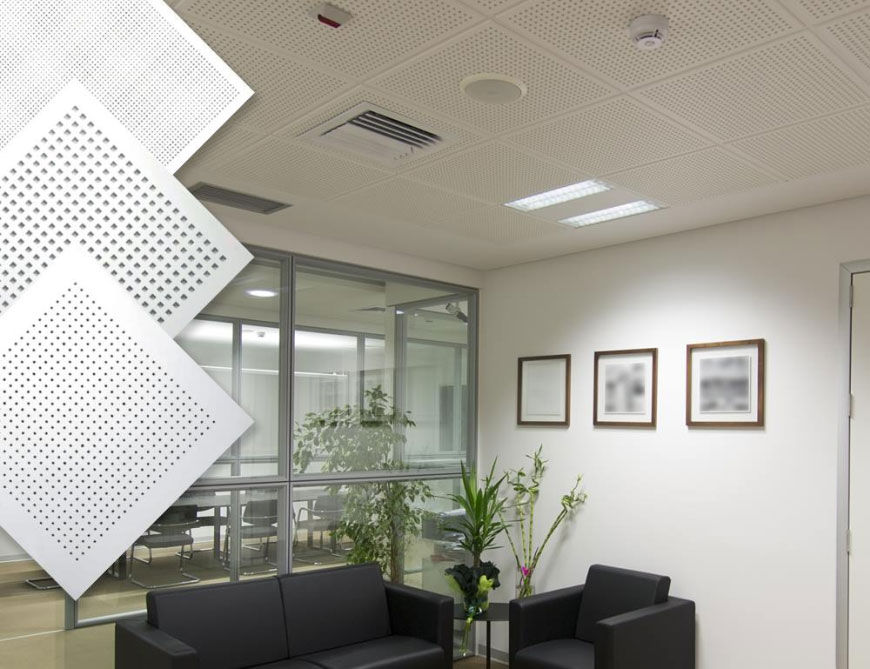

  • EchoBloc Tiles.
Where to Buy

Information provided are for reference purpose only and due care has been taken to ensure accuracy at time of publication. Products, specifications and requirements may vary according to geographical locations and applications. As each project is unique, please contact your local Siam Gypsum representative for further assessment.
