ProLine Max

The Elephant ProLine Maxsystem is for concealed ceilings that need to carry exceptional weight. Developed, designed and tested the main runner to carry up to 100 kg without affecting ceiling levels or causing ceiling damage.

Special Features

Suitable for ceilings that combine integrated working systems, such as shopping mall ceilings.

Main frame can carry up to 100 kg per point.

Main frame can be expanded up to 3 meters with minimum deflection effect.

Quick and easy to install with accessories designed especially for ProLine Max system.

Suitable for ceilings that need to carry extra weight, such as fire resistant ceilings in factories.

Physical Properties
  • Standard : TIS 863-2532 (Thai Industrial Standards)
  • Matarial : Hot Dip Galvanized Steel , TIS 50-2548 (Thai Industrial Standards) or JIS G3302
  • Thickness : 0.52 mm.
  • Zinc coating : 220 g / m2
Applications
  • Suitable for smooth ceilings that need to carry exceptional weight, such as fire resistant ceilings in factories or ceilings that need to extend the main frame for extended space such as shopping mall ceilings.

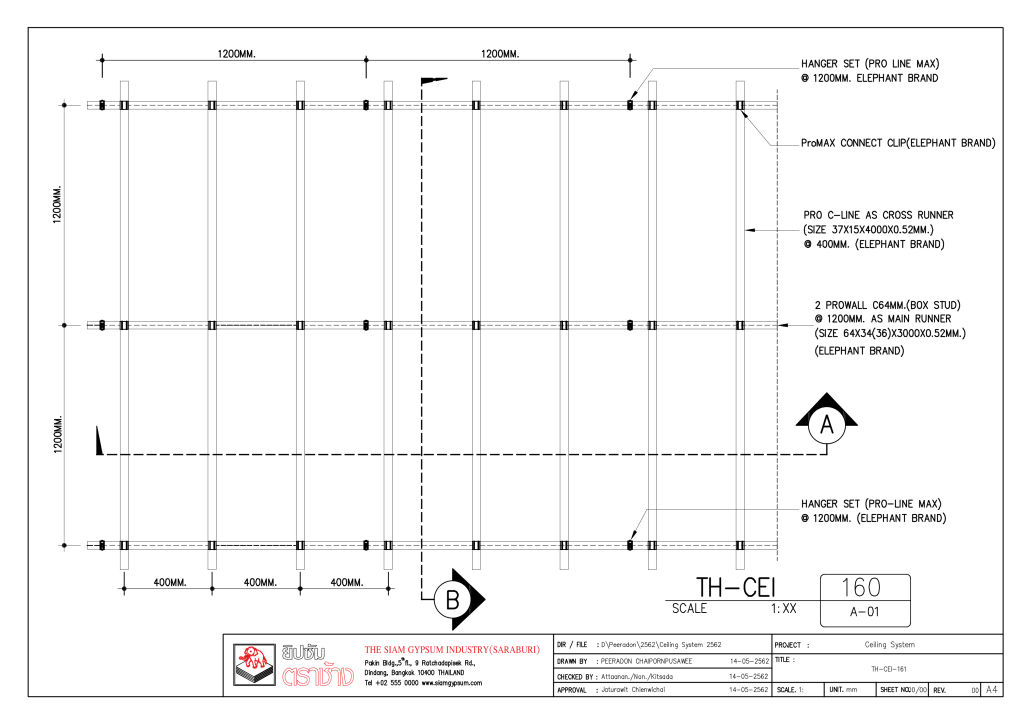

Size
  • ProWall C Stud: 36 x 64 x 3000 mm.
  • Pro C Line : 15 x 37 x 4000 mm.
  • ProWall Angle : 25 x 24 x 2400 mm.
Where to Buy

Information provided are for reference purpose only and due care has been taken to ensure accuracy at time of publication. Products, specifications and requirements may vary according to geographical locations and applications. As each project is unique, please contact your local Siam Gypsum representative for further assessment.
